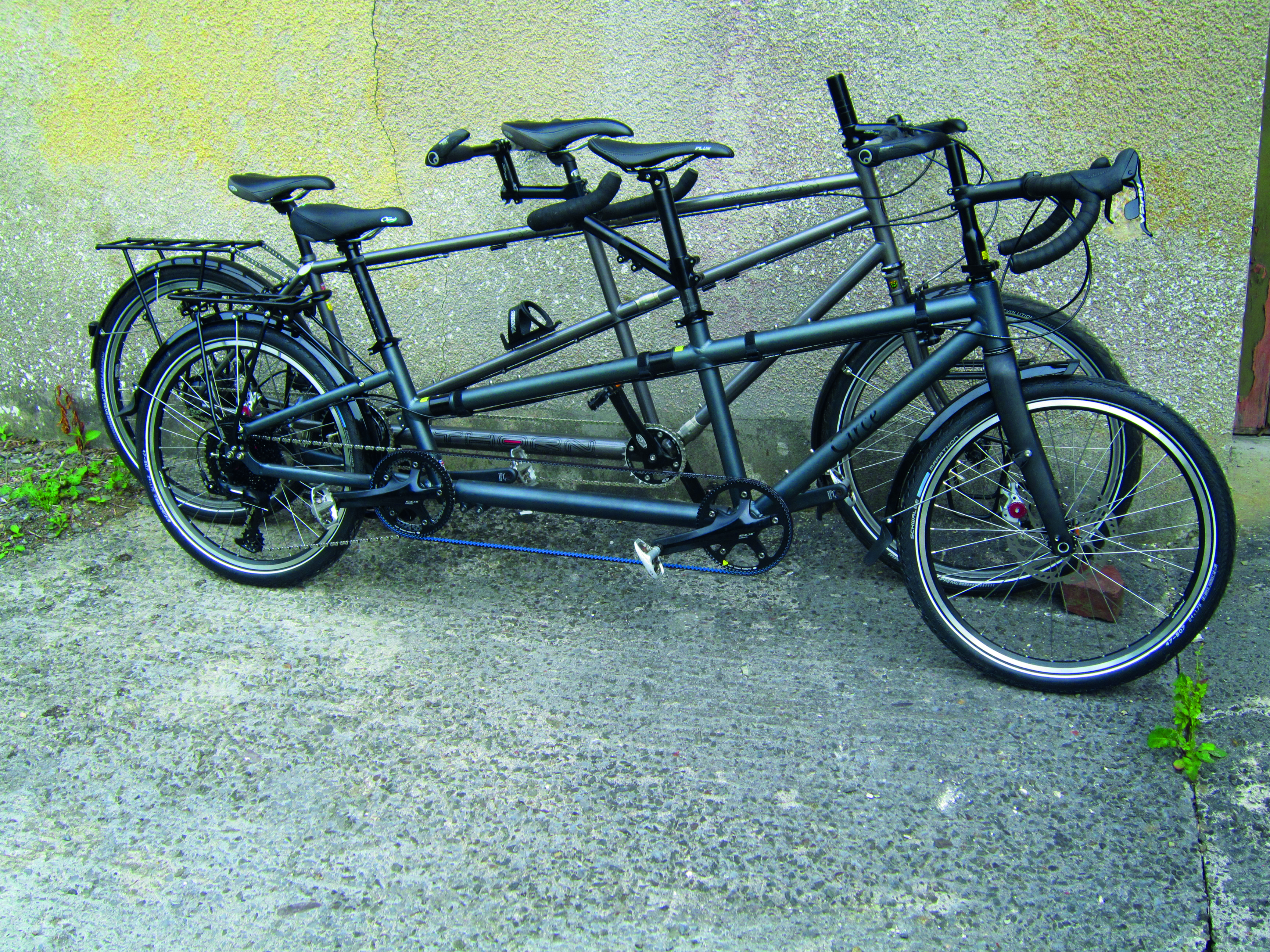

Radically different in design and construction they may be, but the two tandems on test here offer surprisingly similar riding experiences: stable at speed, comfortable, equipped for serious touring duty, and fitted with brakes and gears suitable for challenging roads.
They also feature frames that can be taken apart for storage or convenient transportation – in effect, addressing the primary checklist of a tandem owner’s requirements.
Of the two, the Thorn is by some margin the more conventional, and will appeal to many potential buyers on this basis alone. It’s built with beefily TIG-welded, heat-treated, Japanese-made ‘mega-oversized’ chromoly steel tubes.
The classic ‘direct lateral’ frame has a central frame spar running from the middle of the head tube to the junction of the seat tube and ‘drainpipe’ bottom tube. This offers an excellent combination of torsional and vertical stiffness at a very acceptable weight.
Size L/M gets a ‘double marathon’-style frame, with a second central spar running between the seat tubes and below the stoker’s top tube to a pair of secondary seat stays, adding useful stiffness to a large structure potentially carrying a lot of weight.
All Raven Twins come with S&S frame couplers as standard. The frame design necessitates the use of three of the couplers, which are sited forward of the captain’s seat tube. The frame therefore separates within the front triangle, some way forward of the machine’s mid-point.
This, according to Thorn, leaves the main section shorter than a regular bicycle with its wheels fitted. It’s not exactly ‘suitcase ready’ – it won’t fit in an S&S case or similar – but it’s small enough to be fairly manageable and to fit in a solo cycle-sized space.
The other advantage of this layout is that it leaves the transmission, including the timing chain, undisturbed; there’s no need to faff about with oily components.
Circe’s Eos could hardly be more different, although its frame is also TIG welded. The material is high-strength 7005 aluminium alloy, while the structural solution chosen is very large diameter tubes – two of them, as there’s no central spar.
So effective are the two tubes that the frame can be exceptionally low-slung, especially at the rear, without compromising on vital torsional stiffness or load capacity, although there’s a maximum stoker weight of 80kg.
The Circe is versatile and adaptable, and its low standover heights make dismounts easier for shorter riders
Richard Hallett, technical editor, Cycle magazine
If not as gracefully proportioned as the Thorn, the Circe is highly versatile and adaptable, and its low standover heights make dismounts easier for shorter riders. Large-diameter seatposts, secured by quick-release clamps, provide sufficient stiffness for heavier riders.
Incorporated into the frame is Circe’s ‘separable system’, an optional extra adding £600 to the cost of the machine. Removable tubes replace the two main spars in the stoker section and allow the Eos to be packed into a couple of bags or small cases for transport.
Although it employs four clamped joints, the assembled frame feels impressively flex free. The system can be retro-fitted by Circe, albeit at a higher cost than if fitted on initial purchase.
On this build, Thorn opts for a sturdy all-steel fork with twin-plate crown, Reynolds tandem-spec blades, and cantilever brake bosses. The Eos, however, has a massive carbon fibre disc-only fork developed by Circe specifically for tandem use and able to take a low-rider front rack. With this and a rear pannier rack, carrying capacity is considerable, while the load is kept low thanks to small, 24in wheels.
Disc brake-equipped as standard but with bosses on the seat stays for cantilevers or V-brakes, the Eos can be fitted with either 26in (ISO 559 ISO) or 24in (507) wheels. Narrow 28mm tyres are fitted to the 26in wheels for more athletic riding, while the 24in wheels of the test machine are fitted with fat 47mm tyres for the comfort and durability required for touring.
While the Raven will also, in theory, accept more than one wheel size, this in practice requires Thorn’s alternative fork – a disc brake-specific unicrown design, which has exceptionally rigid heavy-duty legs designed for the stresses involved with discs. If fitted with this fork, and with discs front and rear, the Raven can be ordered with 26in (559), 650B (584) or 700C (622) wheels.
Thorn’s sales brochure makes clear that the company feels linear-pull V-brakes offer not only ample braking capacity but the optimum combination of power, ride comfort (thanks to more resilient fork legs), and mechanical simplicity. So they do. Despite the favourable brake torque ratio afforded by its 203mm rotors and small wheels, the Eos doesn’t pull up any more smartly than the Thorn.
Nor does the Eos shift gear ratios quite as niftily, although the SRAM 11-speed transmission – with Jtek cable adapter to get the right-hand Apex Double Tap dual-control lever and 12-speed Eagle rear mech working nicely together over the enormous SunRace cassette – has no issues anywhere in its range.
The Thorn’s Rohloff Speedhub, however, changes gear instantly at a standstill and under load when moving, giving it a slight edge, especially on a steep gradient.
There’s also a gear indicator for the Rohloff, whereas checking gear choice on the Eos requires a backwards, not always revealing, glance. The Thorn’s 14 gear ratios are closer spaced, while those on the Circe involve considerable jumps, and the Thorn has a slightly higher top gear and lower bottom.
Indeed, the Raven’s Rohloff hub would win the comparison handsomely but for a whining sound, accompanied by slight vibration, in several of the lower gears. This is said to lessen with miles covered as the internal gear teeth ‘run in’, but might prove irritating on a long climb.
The Circe’s transmission, on the other hand, runs noiselessly and amazingly smoothly, thanks in part to its Gates Carbon Drive timing belt. Although under high tension, as required with these belts, there is little sensation of drag or stretch even under hard pedalling. It’s the most impressive belt installation I’ve used.
It also means there’s no filthy chain or chainrings to handle when taking the separable system apart, and the belt, which does not have to pass though a frame loop, can be easily removed and stuffed in a bag for transport.
Using in each case a transmission with a single ‘front’ chainring, both tandems have the timing and rear drives on the same side, avoiding the need to take the captain’s effort through the rear bottom bracket axle. Not only does this greatly increase the longevity of the rear axle and its bearings, there’s a notable improvement to the directness of the drive. A crossover transmission can feel soggy as the rear axle twists under load.
Adjusted tightly (as supplied for the test), the Raven’s timing and main drive chains offered the same impressive directness, aided no doubt by Thorn’s informed choice of crank lengths. Many tandem pairings find it difficult to pedal smoothly together at a high cadence, especially where the stoker is smaller.
Fitting longer cranks up front should slow the captain’s preferred cadence and should make it easier for both riders to find a mutually comfortable speed. Furthermore, climbing on a tandem can involve hard low-cadence work, where longer cranks may assist the usually stronger captain. The Circe wears 170mm cranks front and rear, which will no doubt suit some pairings.
Last of the obvious differences is front handlebar shape. The Thorn’s flat bar, fitted with Ergon grips and extensions, is comfortable to hold but may not provide the variety of hand positions desired by some riders. The flared drop bar of the Eos gives variety but won’t suit those who, like me, find such bars wider than wanted when on the drops.
The latter are more easily swapped, not least because there aren’t many drop handlebar brake lever options for V-brakes or shifter options for the Rohloff hub.
Neither of these two impressive machines has a real weakness, both rolling quickly and steering at any speed with aplomb. The Raven’s saddles better suited me and my wife, while the Circe’s low rear standover meant an easier dismount for my 5ft (1.53m) stoker.
Four grand is a hefty wedge to spend on a bicycle, even built for two, but both tandems here offer a specification and performance to match their price tags. Aimed at the touring market, they each feature: a wide gearing range; wide, comfortable and durable tyres and wheelsets; effective brakes; and a separable frame that makes for easier storage and transport.
Circe’s version packs smaller and, along with the one-size, hugely adjustable design, can be made to suit a wide variety of riders. Thorn’s less compact offering has more of a traditional, bespoke look, plus a wider-ranged – and potentially tougher – transmission. (Note that the Eos is also available with Rohloff gearing.)
Co-motion Mocha £2,745+
Touring/all-roads tandem with a huge range of options. Has a TIG-welded steel frame and 650B wheels./p>
Orbit Lightning Pro 700C £3,350
Well-equipped light tourer with TIG-welded aluminium frame, carbon fork, three brakes, and crossover derailleur transmission.
First published in Cycle magazine, October/November 2020 issue. All information correct at time of publishing.
Our test promise
At Cycling UK and Cycle magazine, we are proudly independent. There’s no pressure to please advertisers as we’re funded by our members. Our product reviews aren’t press releases; they’re written by experienced cyclists after thorough testing.
Circe Cycles EOS
Price: £4,200 (inc £600 separable system upgrade)
Sizes: one size
Weight: 17.8kg (no pedals)
Frame & fork: TIG-welded 7005 aluminium alloy frame with Circe separable system. Fittings for 3 bottles, mudguards, rear rack, canti/V & disc brakes. Circe EOS carbon tandem fork for disc brake, tapered steerer
Wheels: 47-507 Schwalbe Marathon tyres, Airnimal 32h rims, Shimano Deore front hub, Shimano FH-MT400 rear hub (142×12 mm), Sapim Strong stainless steel spokes
Transmission: Shimano FC5703 105 cranksets front & rear with 170mm cranks, Gates CDX Carbon Drive timing chainrings, 44t RaceFace Narrow/Wide chainring, Shimano Tiagra Hollowtech II bottom brackets, Gates 250t Carbon Drive timing belt, KMC X11-93 drive chain. Shimano Apex 11-speed r/h shifter, SRAM Eagle SX rear derailleur with Jtek Shiftmate 9 adapter, SunRace MX80 11-speed cassette, 11-50t. 11 ratios, 21-96in
Braking: Avid BB7 mechanical disc, 203mm rotors, SRAM Apex levers
Equipment: Racktime aluminium rack, ;SKS Cromoplastic mudguards
Thorn Raven Twin MK3
Sizes: S/S, L/S (tested), S/M, M/M, L/M, L/L
Weight: 20.05 kg (no pedals)
Frame & fork: TIG-welded ‘969’ double-butted chromoly steel frame with S&S couplers, 2× eccentric bb shells, Rohloff dropouts
Fittings: 4 bottle cages, detachable cantilever/V-brake spigots, rear disc brake. Thorn Tandem V fork with Reynolds Tandem blades, lowrider rack bosses
Wheels: 50-559 Schwalbe Marathon Supreme HD tyres, Ryde Andra 30 26in rims, Shimano Deore HB-T610-L 32h front hub, Rohloff Speedhub 500/14 rear hub with tandem axle plate
Transmission: Thorn 104/64 PCD 4-bolt triple crankset (front 175mm, rear 165mm), Shimano UN55 73mm cartridge bottom brackets, Thorn 104mm BCD 4-arm reversible single chainrings 3/32in (main drive 46t, timing drive 34t) KMC X1 3/32in chain, 17t sprocket. 14 ratios, 20-103in
Braking: Shimano Deore XT BR-T780 V-brake front & rear, Shimano Deore XT V-brake levers
Equipment: Thorn Expedition racks front and rear, SKS P55 mudguards
